Gasket
Series |
 |
| G2140 SERRATED GASKET |
| |
 |
| |
 |
Ret ring with concentric serrations made ofvarious types of metal.Used when bolting force is not sufficient to seal a flat gasket,because it contacts flange face only at serration peaks.Commonly used on valve bannets and flanges attached to equipment 3 types of cross section as per right table are available.
|

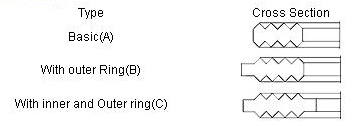

| Type & Cross Section |
 |
| Depth of Serration(t) |
| Width |
4.5mm |
3.0mm |
Cross Section |
| less than 10mm |
inner diameter less than 200mm;0.75mm |
0.5mm |
 |
| 10mm and above |
1.0mm |
|
|
